Python爬虫基于Tkinte+requests采集商品数据（第34节）

pip install requests
pip install openpyxl
pip install pillow

import os, json, queue, threading, hashlib, time, requests, webbrowser
from openpyxl import Workbook
from openpyxl.drawing.image import Image
import tkinter as tk
from tkinter import ttk, messagebox, scrolledtext
from datetime import datetime

# 获取当前脚本文件所在的目录
work_directory = os.path.dirname(os.path.abspath(__file__))
# 将当前脚本文件所在的目录设置为工作目录
os.chdir(work_directory)

# 初始化常量配置
REQUEST_API = "https://h5api.m.goofish.com/h5/mtop.taobao.idlemtopsearch.pc.search/1.0/"
REQUEST_KEY = "34839810"
USER_AGENT = "Mozilla/5.0 (Windows; U; Windows NT 5.0) AppleWebKit/534.19.3 (KHTML, like Gecko) Version/5.1 Safari/534.19.3"
INTERVAL_TIME = 1.5  # 请求间隔设置1.5秒
COOKIE_DATA_FILE = "cookie_data_file.json"  # 保存Cookie的文件
MAX_THREADS = 5  # 设置最大工作线程数

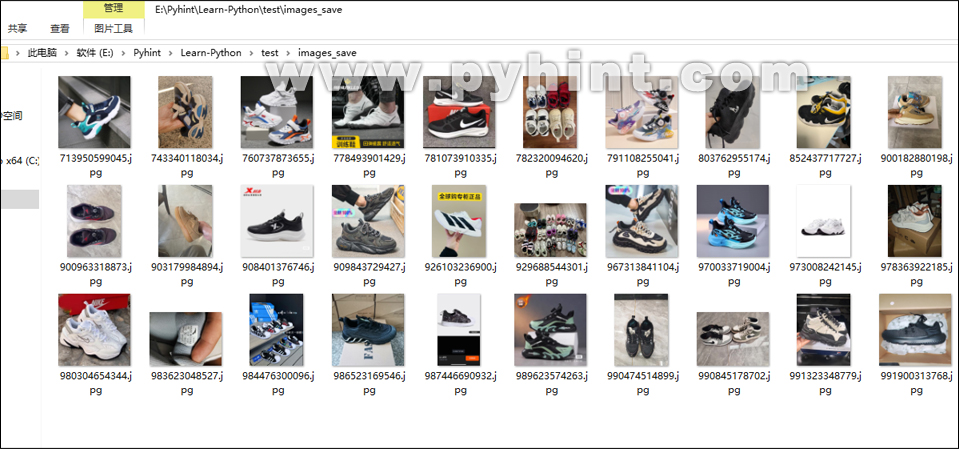

IMAGES_SAVE_FOLDER = "images_save"  # 定义保存图片的文件夹名称
IMAGE_TYPES = ['jpg', 'jpeg', 'png', 'gif', 'bmp']  # 定义图片格式列表

# 定义CollectProductsSpider类，用于封装爬虫功能
class CollectProductsSpider:
    def __init__(self, root):
        self.root = root

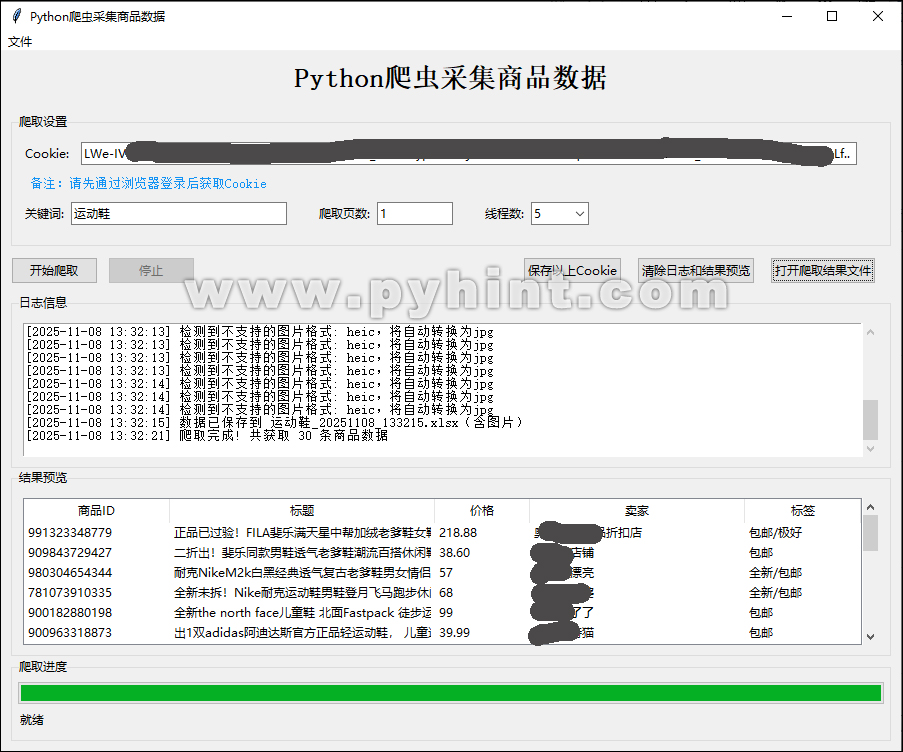

        self.root.title("Python爬虫采集商品数据")

        # 程序窗口设置居中
        window_width = 900
        window_height = 700
        screen_width = self.root.winfo_screenwidth()
        screen_height = self.root.winfo_screenheight()
        x = (screen_width - window_width) / 2
        y = (screen_height - window_height) / 2
        self.root.geometry('%dx%d+%d+%d' % (window_width, window_height, x, y))
        self.root.resizable(True, True)

        # 创建顶部的菜单栏
        self.spider_menu = tk.Menu(self.root)
        file_menu = tk.Menu(self.spider_menu, tearoff=0)
        self.spider_menu.add_cascade(label='文件', menu=file_menu)
        file_menu.add_command(label='打开原网站', command=self.open_website)
        file_menu.add_command(label='打开爬取结果文件', command=self.open_result_file)
        file_menu.add_command(label='退出', command=self.GUI_window_close)

        # 放置菜单栏
        self.root.config(menu=self.spider_menu)

        # 创建日志记录队列
        self.record_queue = queue.Queue()

        # 将窗口关闭事件与GUI_window_close函数关联
        self.root.protocol("WM_DELETE_WINDOW", self.GUI_window_close)

        # 创建状态变量
        self.is_running = False

        # 初始化cookie和token为空
        self.cookie = ""
        self.token = ""

        # 判断保存图片的文件夹是否存在，如果不存在则在当前工作目录创建该文件夹
        if not os.path.exists(IMAGES_SAVE_FOLDER):
            os.makedirs(IMAGES_SAVE_FOLDER)

        # 初始化加载已保存的Cookie
        self.load_cookie()

        # GUI界面创建
        self.create_widgets()

        # 启动日志更新线程
        threading.Thread(target=self.update_record, daemon=True).start()

    # 创建主界面控件

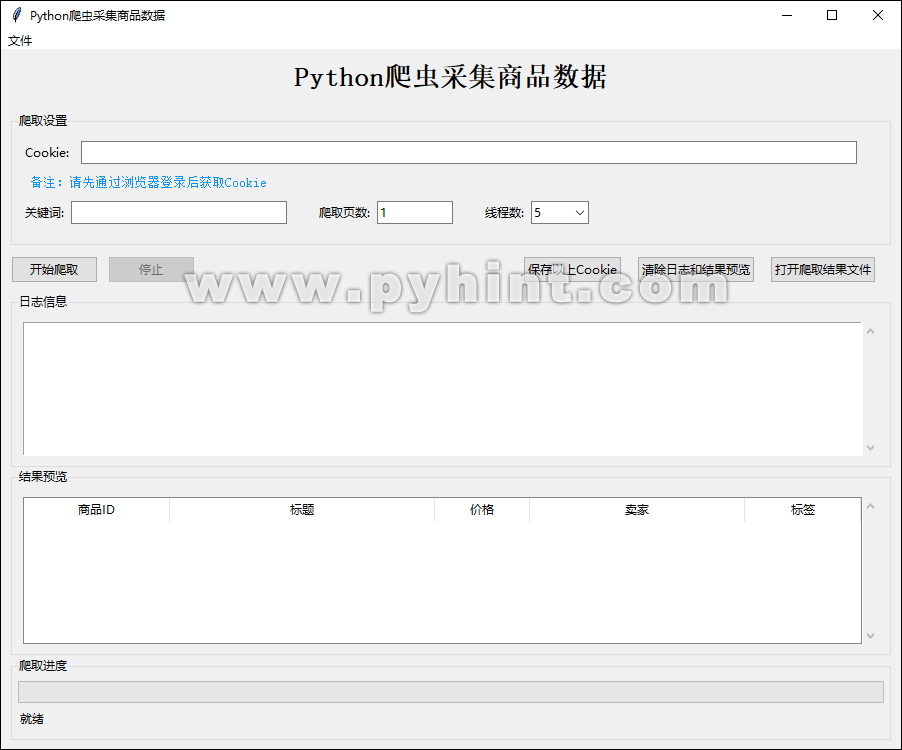

    def create_widgets(self):
        # 创建主框架
        main_frame = ttk.Frame(self.root, padding=10)
        main_frame.pack(fill=tk.BOTH, expand=True)

        # 定义标题标签
        title_label = ttk.Label(main_frame, text="Python爬虫采集商品数据", font=('宋体', 20, 'bold'))
        title_label.pack(pady=(0, 20))

        # 配置输入区域
        input_frame = ttk.LabelFrame(main_frame, text="爬取设置", padding=10)
        input_frame.pack(fill=tk.X, pady=(0, 10))

        # cookie输入区域
        cookie_frame = tk.Frame(input_frame)
        cookie_frame.pack(fill=tk.X, pady=(0, 10))

        # Cookie输入
        ttk.Label(cookie_frame, text="Cookie:").pack(side=tk.LEFT, padx=(0, 10))
        self.cookie_var = tk.StringVar(value=self.cookie)
        self.cookie_entry = ttk.Entry(cookie_frame, textvariable=self.cookie_var, width=110)
        self.cookie_entry.pack(side=tk.LEFT, padx=(0, 10))

        # 创建备注区域
        description_frame = ttk.Frame(input_frame)
        description_frame.pack(fill=tk.X, pady=(0, 10))

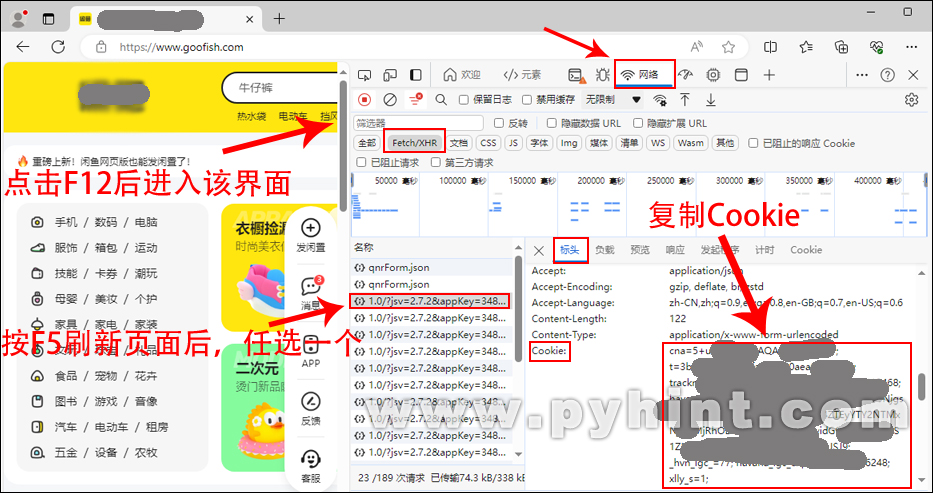

        description_text = '备注：请先通过浏览器登录后获取Cookie'
        ttk.Label(description_frame, text=description_text, font=('宋体', 10), foreground="#1192f4").pack(side=tk.LEFT, padx=5)

        # 输入区域
        set_frame = tk.Frame(input_frame)
        set_frame.pack(fill=tk.X, pady=(0, 10))

        # 输入要搜索的关键词
        ttk.Label(set_frame, text="关键词:").pack(side=tk.LEFT, padx=(0, 5))
        self.keyword_var = tk.StringVar()
        self.keyword_entry = ttk.Entry(set_frame, textvariable=self.keyword_var, width=30)
        self.keyword_entry.pack(side=tk.LEFT, padx=(0, 30))

        # 爬取页数设置
        ttk.Label(set_frame, text="爬取页数:").pack(side=tk.LEFT, padx=(0, 5))
        self.page_var = tk.StringVar(value="1")
        self.page_entry = ttk.Entry(set_frame, textvariable=self.page_var, width=10)
        self.page_entry.pack(side=tk.LEFT, padx=(0, 30))

        # 设置线程数
        ttk.Label(set_frame, text="线程数:").pack(side=tk.LEFT, padx=(0, 5))
        self.thread_var = tk.StringVar(value=str(MAX_THREADS))
        self.thread_entry = ttk.Combobox(set_frame, textvariable=self.thread_var, width=5, state="readonly")
        self.thread_entry['values'] = tuple(str(i) for i in range(1, MAX_THREADS + 1))
        self.thread_entry.pack(side=tk.LEFT, padx=(0, 10))

        # 按钮区域
        button_frame = ttk.Frame(main_frame)
        button_frame.pack(fill=tk.X, pady=(0, 10))

        self.start_button = ttk.Button(button_frame, text="开始爬取", command=self.start_crawling)
        self.start_button.pack(side=tk.LEFT, padx=(0, 10))

        self.stop_button = ttk.Button(button_frame, text="停止", command=self.stop_crawling, state=tk.DISABLED)
        self.stop_button.pack(side=tk.LEFT)

        ttk.Button(button_frame, text="打开爬取结果文件", command=self.open_result_file).pack(side=tk.RIGHT, padx=(0, 15))
        ttk.Button(button_frame, text="清除日志和结果预览", command=self.clear_record).pack(side=tk.RIGHT, padx=(0, 15))
        ttk.Button(button_frame, text="保存以上Cookie", command=self.save_cookie).pack(side=tk.RIGHT, padx=(0, 15))

        # 日志记录区域
        record_frame = ttk.LabelFrame(main_frame, text="日志信息", padding="10")
        record_frame.pack(fill=tk.BOTH)

        self.record_text = scrolledtext.ScrolledText(record_frame, wrap=tk.WORD, state=tk.DISABLED, height=10)
        self.record_text.pack(fill=tk.BOTH)

        # 结果预览区
        result_frame = ttk.LabelFrame(main_frame, text="结果预览", padding="10")
        result_frame.pack(fill=tk.BOTH)

        # 创建Treeview
        columns = ('商品ID', '标题', '价格', '卖家', '标签')
        self.tree = ttk.Treeview(result_frame, columns=columns, show='headings', height=6)

        # 为Treeview定义列
        self.tree.heading('商品ID', text='商品ID')
        self.tree.heading('标题', text='标题')
        self.tree.heading('价格', text='价格')
        self.tree.heading('卖家', text='卖家')
        self.tree.heading('标签', text='标签')

        # 为Treeview设置列宽
        self.tree.column('商品ID', width=80)
        self.tree.column('标题', width=200)
        self.tree.column('价格', width=30)
        self.tree.column('卖家', width=150)
        self.tree.column('标签', width=50)

        # 为Treeview创建滚动条
        tree_scrollbar = ttk.Scrollbar(result_frame, orient="vertical", command=self.tree.yview)
        self.tree.configure(yscrollcommand=tree_scrollbar.set)
        self.tree.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)
        tree_scrollbar.pack(side=tk.RIGHT, fill=tk.Y)

        # 爬取进度显示区
        bottom_frame = ttk.LabelFrame(main_frame, text="爬取进度", padding=5)
        bottom_frame.pack(side=tk.BOTTOM, fill=tk.X)

        self.progress_var = tk.DoubleVar()
        self.progress_bar = ttk.Progressbar(bottom_frame, variable=self.progress_var, maximum=100)
        self.progress_bar.pack(fill=tk.X)
        # 初始化进度条显示为0
        self.progress_var.set(0)
        self.progress_bar.update()

        # 爬取状态栏
        self.status_var = tk.StringVar(value="就绪")
        status_bar = ttk.Label(bottom_frame, textvariable=self.status_var)
        status_bar.pack(fill=tk.X, pady=5)

    # 将消息添加到日志队列
    def record_message(self, message):
        # 以"年-月-日 小时-分钟-秒"的格式获取当前日期
        current_time = datetime.now().strftime("%Y-%m-%d %H:%M:%S")
        self.record_queue.put(f"[{current_time}] {message}")

    # 更新日志记录
    def update_record(self):
        try:
            while True:
                # 从队列获取所有可用消息
                messages = []
                while not self.record_queue.empty():
                    messages.append(self.record_queue.get_nowait())

                if messages:
                    self.record_text.config(state=tk.NORMAL)
                    for msg in messages:
                        self.record_text.insert(tk.END, msg + "\n")
                    self.record_text.config(state=tk.DISABLED)
                    self.record_text.yview(tk.END)

                time.sleep(0.1)
        except Exception as e:
            print(f"日志更新线程错误: {e}")

    # 清空日志内容和结果预览内容
    def clear_record(self):
        self.record_text.config(state=tk.NORMAL)
        self.record_text.delete(1.0, tk.END)
        self.record_text.config(state=tk.DISABLED)
        self.progress_var.set(0)
        # 清空Treeview
        for item in self.tree.get_children():
            self.tree.delete(item)

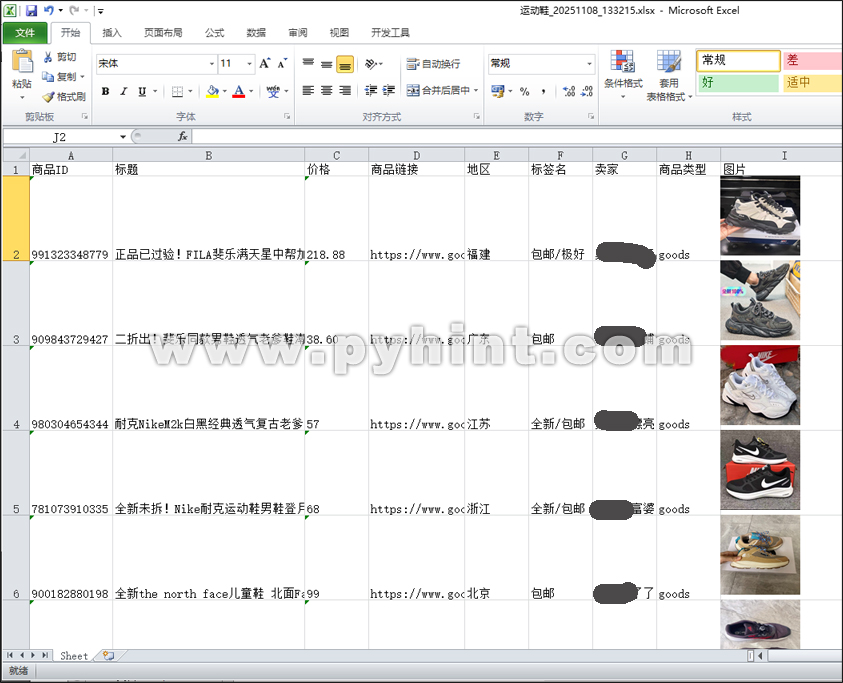

    # 打开爬取结果文件，注意是Excel文件
    def open_result_file(self):
        keyword = self.keyword_entry.get().strip()
        if not keyword:
            messagebox.showinfo("提示", "未找到结果文件")
            return

        # 查找最新的结果文件
        files = [f for f in os.listdir('.') if f.startswith(keyword) and f.endswith('.xlsx')]
        if files:
            latest_file = max(files, key=os.path.getctime)
            try:
                os.startfile(latest_file)
            except:
                # Linux系统使用xdg-open
                os.system(f'xdg-open "{latest_file}"')
        else:
            messagebox.showinfo("提示", "未找到结果文件")

    # 从已保存的文件中加载Cookie
    def load_cookie(self):
        try:
            if os.path.exists(COOKIE_DATA_FILE):
                with open(COOKIE_DATA_FILE, 'r', encoding='utf-8') as f:
                    data = json.load(f)
                    self.cookie = data.get('cookie', '')
                    self.record_message(f"已加载保存的Cookie")
        except Exception as e:
            self.record_message(f"加载Cookie失败: {e}")

    # 保存输入的Cookie到本地文件中
    def save_cookie(self):
        self.cookie = self.cookie_var.get().strip()
        if not self.cookie:
            messagebox.showwarning("警告", "输入的Cookie不能为空")
            return

        try:
            with open(COOKIE_DATA_FILE, 'w', encoding='utf-8') as f:
                json.dump({'cookie': self.cookie}, f, ensure_ascii=False, indent=2)
            self.record_message("Cookie保存成功")
        except Exception as e:
            self.record_message(f"保存Cookie失败: {e}")

    # 从cookie字符串中提取token，只提取“_m_h5_tk=”后面的内容
    def extract_token(self):
        cookie = self.cookie_var.get().strip()
        if not cookie:
            self.record_message("Cookie不能为空")
            return None

        try:
            # 查找“_m_h5_tk”在cookie中的位置
            if "_m_h5_tk=" not in cookie:
                self.record_message("Cookie中缺少_m_h5_tk值")
                return None
            start_idx = cookie.find("_m_h5_tk=") + len("_m_h5_tk=")
            end_idx = cookie.find(";", start_idx)

            # 判断如果返回“-1”则表示未找到任何值
            if end_idx == -1:
                end_idx = len(cookie)

            # 获取字符串中“_m_h5_tk=”与其后面“;”之间的数据
            m_h5_tk_value = cookie[start_idx:end_idx]
            token = m_h5_tk_value.split('_')[0]
            return token
        except Exception as e:
            self.record_message(f"提取Token失败: {e}")
            return None

    # 验证用户输入的内容
    def validate_inputs(self):
        # 验证Cookie
        self.cookie = self.cookie_var.get().strip()
        if not self.cookie:
            messagebox.showwarning("警告", "Cookie不能为空")
            return False

        # 提取token
        self.token = self.extract_token()
        if not self.token:
            return False

        # 验证关键词
        keyword = self.keyword_var.get().strip()
        if not keyword:
            messagebox.showwarning("警告", "关键词不能为空")
            return False

        # 验证页数
        try:
            pages = int(self.page_var.get())
            if pages <= 0:
                messagebox.showwarning("警告", "页数必须是正整数")
                return False
        except ValueError:
            messagebox.showwarning("警告", "页数必须是数字")
            return False

        # 验证线程数
        try:
            threads = int(self.thread_var.get())
            if threads <= 0 or threads > MAX_THREADS:
                messagebox.showwarning("警告", f"线程数必须在1-{MAX_THREADS}之间")
                return False
        except ValueError:
            messagebox.showwarning("警告", "线程数必须是数字")
            return False

        return True

    # 开始爬取
    def start_crawling(self):
        if self.is_running:
            return

        if not self.validate_inputs():
            return

        # 更新界面状态
        self.progress_var.set(0)
        self.is_running = True
        self.start_button.config(state=tk.DISABLED)
        self.stop_button.config(state=tk.NORMAL)
        self.status_var.set("数据爬取中...")

        # 清空Treeview
        for item in self.tree.get_children():
            self.tree.delete(item)

        # 获取参数
        keyword = self.keyword_var.get().strip()
        pages = int(self.page_var.get())
        threads = int(self.thread_var.get())

        # 创建任务队列
        self.work_queue = queue.Queue()
        for page in range(1, pages + 1):
            self.work_queue.put(page)

        # 创建结果列表
        self.results = []
        self.failed_pages = []

        # 创建并启动工作线程
        self.workers = []
        for i in range(threads):
            worker = threading.Thread(target=self.thread_task, args=(keyword,))
            worker.daemon = True
            worker.start()
            self.workers.append(worker)
            self.record_message(f"启动工作线程 #{i + 1}")

        # 启动监视线程
        threading.Thread(target=self.monitor_workers).start()

    # 工作线程任务
    def thread_task(self, keyword):
        # 获取当前处理进度，初始化为0
        current_product = 0
        # 设置进度条最大进度为100%
        max_progress = 100.0
        while not self.work_queue.empty() and self.is_running:
            try:
                page = self.work_queue.get_nowait()
                self.record_message(f"线程 {threading.current_thread().name} 开始爬取第 {page} 页")

                # 发送请求
                products = self.fetch_products(keyword, page)

                if products is None:
                    self.failed_pages.append(page)
                    self.record_message(f"第 {page} 页爬取失败")
                else:
                    # 解析商品
                    for product in products:
                        parsed = self.parse_product(product)
                        if parsed:
                            self.results.append(parsed)
                            current_product += 1
                            # 计算当前进度
                            progress = (current_product / len(products)) * max_progress
                            # 更新进度条变量
                            self.progress_var.set(progress)
                            # 更新进度条显示
                            self.progress_bar.update()

                    self.record_message(f"第 {page} 页完成, 获取 {len(products)} 条商品")

                # 任务完成
                self.work_queue.task_done()

                # 请求间隔
                time.sleep(INTERVAL_TIME)

            except queue.Empty:
                break
            except Exception as e:
                self.record_message(f"线程错误: {str(e)}")

    # 对工作线程状态进行监视
    def monitor_workers(self):
        while any(worker.is_alive() for worker in self.workers):
            time.sleep(0.5)

        # 所有线程完成后
        self.root.after(0, self.finish_crawling)

    # 处理爬取完成后的数据
    def finish_crawling(self):
        self.is_running = False

        # 保存结果
        if self.results:
            keyword = self.keyword_var.get().strip()
            self.save_results(keyword)
            self.record_message(f"爬取完成! 共获取 {len(self.results)} 条商品数据")
        else:
            self.record_message("未获取到任何商品数据")

        # 爬取失败页提示
        if self.failed_pages:
            self.record_message(f"以下页爬取失败: {', '.join(map(str, self.failed_pages))}")

        # 更新界面状态
        self.start_button.config(state=tk.NORMAL)
        self.stop_button.config(state=tk.DISABLED)
        self.status_var.set("就绪")

    # 停止爬取
    def stop_crawling(self):
        self.is_running = False
        self.record_message("正在停止爬取...")
        self.status_var.set("正在停止...")

    # 获取商品数据
    def fetch_products(self, keyword, page):
        try:
            # 生成签名和请求参数
            sign, current_time, request_data = self.generate_sign(page, keyword)

            # 构建请求头
            headers = {
                "cookie": self.cookie,
                "origin": "https://www.goofish.com",
                "referer": "https://www.goofish.com/",
                "user-agent": USER_AGENT
            }

            # 构建请求参数
            params = {
                "jsv": "2.7.2",
                "appKey": REQUEST_KEY,
                "t": current_time,
                "sign": sign,
                "v": "1.0",
                "type": "originaljson",
                "accountSite": "xianyu",
                "dataType": "json",
                "timeout": "20000",
                "api": "mtop.taobao.idlemtopsearch.pc.search",
                "sessionOption": "AutoLoginOnly",
                "spm_cnt": "a21ybx.search.0.0",
                "spm_pre": "a21ybx.home.searchSuggest.1.4c053da64Wswaf",
                "log_id": "4c053da64Wswaf"
            }

            # 发送POST请求
            response = requests.post(
                url=REQUEST_API,
                headers=headers,
                params=params,
                data={"data": request_data},
                timeout=15
            )

            # 检查响应状态
            response.raise_for_status()

            # 检查是否Token失效
            result = response.json()
            if "ret" in result and "FAIL_SYS_TOKEN_EXOIRED" in result["ret"][0]:
                self.record_message("Token已过期，请更新Cookie")
                self.root.after(0, self.handle_token_expired)
                return None

            # 检查返回数据是否包含商品列表
            if "data" in result and "resultList" in result["data"]:
                return result["data"]["resultList"]
            else:
                self.record_message(f"第{page}页数据格式异常")
                return None

        except requests.exceptions.RequestException as e:
            self.record_message(f"第{page}页请求失败: {str(e)}")
            return None
        except Exception as e:
            self.record_message(f"第{page}页数据处理错误: {str(e)}")
            return None

    # 处理Token过期
    def handle_token_expired(self):
        self.stop_crawling()
        messagebox.showwarning("Cookie失效", "您的Cookie已过期，请更新Cookie后重试")

    # 生成签名
    def generate_sign(self, page, keyword):
        # 生成当前时间戳（毫秒级）
        current_time = int(time.time() * 1000)

        # 构建请求数据
        request_data = (
            f'{{"pageNumber":{page},"keyword":"{keyword}","fromFilter":false,'
            f'"rowsPerPage":30,"sortValue":"","sortField":"","customDistance":"",'
            f'"gps":"","propValueStr":"","customGps":"","searchReqFromPage":"pcSearch",'
            f'"extraFilterValue":"","userPositionJson":""}}'
        )

        # 构建签名原始字符串
        original_data = f"{self.token}&{current_time}&{REQUEST_KEY}&{request_data}"

        # 计算MD5签名
        md5 = hashlib.md5()
        md5.update(original_data.encode("utf-8"))
        sign = md5.hexdigest()

        return sign, current_time, request_data

    # 解析商品数据（包含图片和URL提取）
    def parse_product(self, product):
        try:
            # 从原始数据中提取核心字段
            item_data = product["data"]["item"]["main"]["exContent"]
            click_params = product["data"]["item"]["main"]["clickParam"]["args"]

            # 提取图片URL
            pic_url = item_data.get("picUrl", "")
            if not pic_url:
                pic_url = click_params.get("picUrl", "无图片链接")

            # 提取卖家信息
            seller = item_data.get("userNickName", "未知用户").strip()

            # 提取标题和包邮信息
            title = item_data.get("title", "").strip()
            tag_text = click_params.get("tagname", "不包邮")

            # 商品类型
            item_type = click_params.get("item_type", "未知类型")

            # 提取商品ID和链接
            item_id = item_data.get("itemId", "")
            product_url = f"https://www.goofish.com/item?id={item_id}"

            # 提取价格
            price = click_params.get("price", "未知价格")

            # 提取地区
            area = item_data.get("area", "未知地区").strip()

            return {
                "seller": seller,
                "title": title,
                "url": product_url,
                "price": price,
                "area": area,
                "pic_url": pic_url,
                "item_id": item_id,
                "tag_text": tag_text,
                "item_type": item_type,
            }

        except Exception as e:
            self.record_message(f"商品数据解析异常: {str(e)}")
            return None

    # 下载已爬取的图片到本地，强制使用jpg格式
    def download_image(self, pic_url, item_id):
        try:
            # 跳过无图片链接的情况
            if pic_url == "无图片链接":
                return None

            # 处理URL中的特殊字符，补全协议头
            if not pic_url.startswith(('http://', 'https://')):
                pic_url = f"http:{pic_url}" if pic_url.startswith('//') else f"https://{pic_url}"

            # 提取并验证文件后缀
            file_ext = pic_url.split(".")[-1].split("?")[0].lower()

            # 处理不支持的格式（如.mpo）
            if file_ext not in IMAGE_TYPES:
                self.record_message(f"检测到不支持的图片格式: {file_ext}，将自动转换为jpg")
                file_ext = "jpg"  # 强制使用支持的格式

            # 图片文件名，用item_id避免重复
            file_name = f"{IMAGES_SAVE_FOLDER}/{item_id}.{file_ext}"

            # 已下载则直接返回路径
            if os.path.exists(file_name):
                return file_name

            # 发送请求下载图片
            headers = {"User-Agent": USER_AGENT}
            response = requests.get(pic_url, headers=headers, timeout=10)
            response.raise_for_status()

            # 保存图片到本地
            with open(file_name, "wb") as f:
                f.write(response.content)

            # 强制转换图片格式为jpg
            if file_ext == "jpg" and pic_url.lower().endswith(('mpo', 'mpo?')):
                try:
                    from PIL import Image as PILImage
                    # 为了兼容jpg格式，打开图片后转换为RGB模式
                    load_image = PILImage.open(file_name)
                    rgb_load_image = load_image.convert('RGB')
                    # 覆盖保存为jpg
                    rgb_load_image.save(file_name, quality=95)
                    self.record_message(f"特殊图片格式已成功转换为jpg: {item_id}.jpg")
                except Exception as e:
                    self.record_message(f"图片格式转换失败: {str(e)}，使用原始文件")

            return file_name

        except Exception as e:
            self.record_message(f"图片下载失败（{pic_url}）: {str(e)}")
            return None

    # 在Treeview中添加一条记录
    def add_to_treeview(self, item_id, title, price, seller, tagname):
        self.tree.insert("", tk.END, values=(item_id, title, price, seller, tagname))

    # 保存结果到Excel，同时插入图片数据
    def save_results(self, keyword):
        try:
            # 创建Excel工作簿和工作表
            wb = Workbook()
            ws = wb.active
            # 添加表头（包含图片列）
            ws.append(["商品ID", "标题", "价格", "商品链接", "地区", "标签名", "卖家", "商品类型", "图片"])

            # 调整列宽
            ws.column_dimensions["A"].width = 13  # 商品ID
            ws.column_dimensions["B"].width = 30  # 标题
            ws.column_dimensions["C"].width = 10  # 价格
            ws.column_dimensions["D"].width = 15  # 商品链接
            ws.column_dimensions["E"].width = 10  # 地区
            ws.column_dimensions["F"].width = 10  # 标签名
            ws.column_dimensions["G"].width = 10  # 卖家
            ws.column_dimensions["H"].width = 10  # 商品类型
            ws.column_dimensions["I"].width = 20  # 图片

            # 向Excel中写入数据，从第2行开始写入，跳过第1行表头
            for row_idx, data in enumerate(self.results, start=2):  #
                # 写入文字信息
                ws.cell(row=row_idx, column=1, value=data["item_id"])  # 商品ID
                ws.cell(row=row_idx, column=2, value=data["title"])  # 标题
                ws.cell(row=row_idx, column=3, value=data["price"]) # 价格
                ws.cell(row=row_idx, column=4, value=data["url"])  # 商品链接
                ws.cell(row=row_idx, column=5, value=data["area"])  # 地区
                ws.cell(row=row_idx, column=6, value=data["tag_text"])  # 标签名
                ws.cell(row=row_idx, column=7, value=data["seller"])  # 卖家
                ws.cell(row=row_idx, column=8, value=data["item_type"])  # 商品类型

                # 下载并插入图片
                pic_path = self.download_image(data["pic_url"], data["item_id"])
                if pic_path and os.path.exists(pic_path):
                    try:
                        # 插入图片
                        load_image = Image(pic_path)
                        # 调整图片大小
                        load_image.width = 100
                        load_image.height = 100
                        # 插入到I列当前行
                        ws.add_image(load_image, anchor=f"I{row_idx}")
                        # 调整行高以适应图片
                        ws.row_dimensions[row_idx].height = 80
                    except Exception as e:
                        self.record_message(f"图片插入失败（{pic_path}）: {str(e)}")

                # 更新界面
                self.add_to_treeview(data["item_id"], data["title"], data["price"], data["seller"], data["tag_text"])

            # 生成文件名
            current_time = datetime.now().strftime("%Y%m%d_%H%M%S")
            filename = f"{keyword}_{current_time}.xlsx"
            wb.save(filename)
            self.record_message(f"数据已保存到 {filename}（含图片）")

            # 提示成功
            messagebox.showinfo("爬取成功", f"共获取 {len(self.results)} 条商品数据")

        except Exception as e:
            self.record_message(f"保存Excel文件失败: {str(e)}")

    # 点击关闭窗口触发函数
    def GUI_window_close(self):
        # 弹出确认对话框
        if messagebox.askokcancel("退出", "你确定要退出吗?"):
            # 点击确定后关闭窗口
            self.root.destroy()

    # 打开原网站
    def open_website(self):
        webbrowser.open("https://www.goofish.com")

# 当前模块直接被执行
if __name__ == "__main__":
    # 创建GUI窗口
    root = tk.Tk()
    app = CollectProductsSpider(root)
    root.mainloop()
